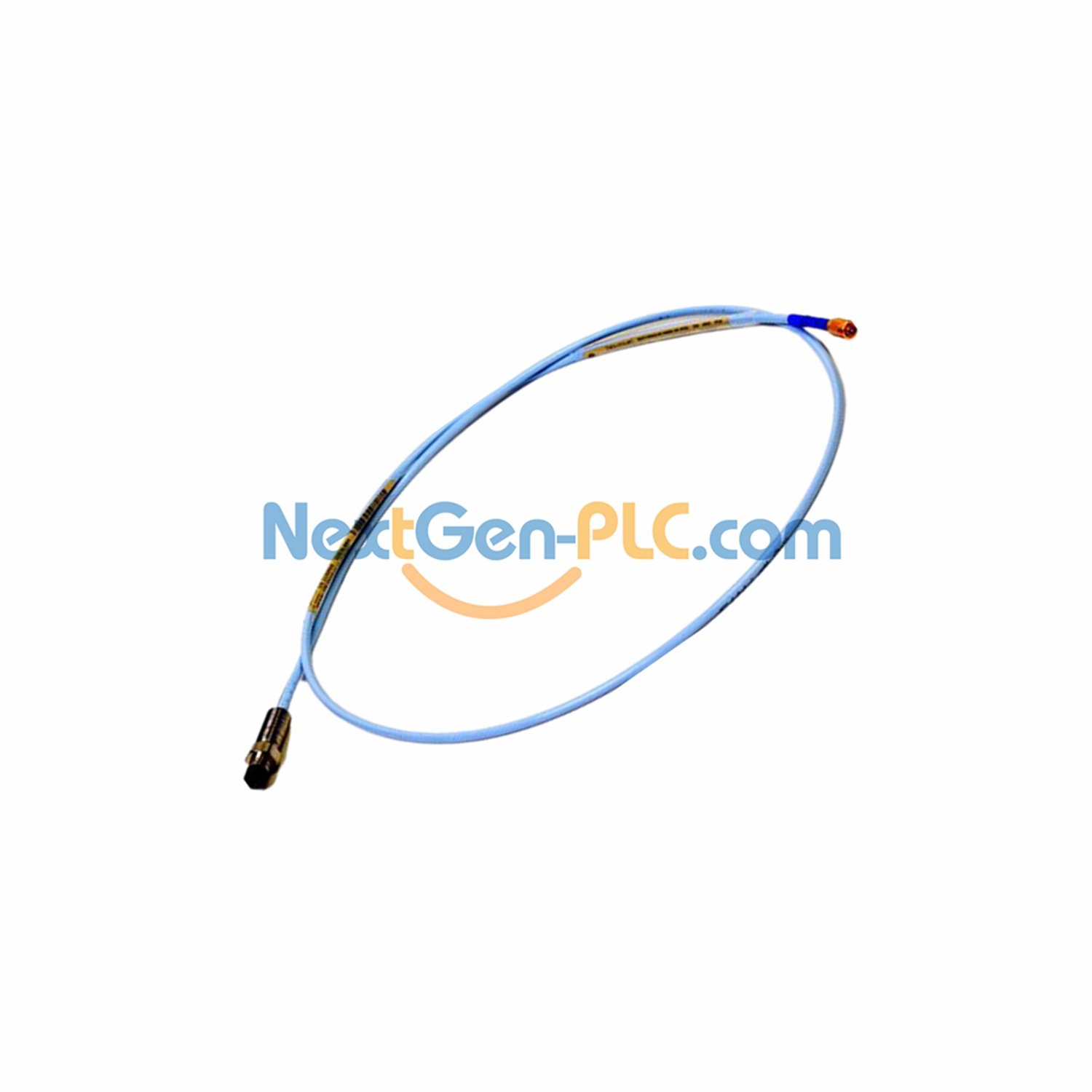

Bently Nevada 3300 XL 8 mm Proximity Probe | Model: 330103-00-04-10-01-05

What It Is

A durable sensor for checking machine vibration in factories. Built with a strong plastic tip and stainless steel body, it works well even in tough environments.

Model Code Breakdown

330103: Base 8 mm probe (M10×1 thread, no armor)
00: No unthreaded part (0 mm)
04: Body length → 40 mm
10: Total length → 1.0 m (3.3 ft)
01: Connector → Small ClickLoc with protector, standard cable
05: Safety certs → CSA, ATEX, IECEx

Key Features

Measure range: 2 mm (80 mils), works from 0.25 mm to 2.3 mm (10–90 mils)
Best gap: -9 Vdc (~1.27 mm / 50 mils)
Resistance: 7.59 ± 0.50 Ω (for 1.0m probe)
Materials: Plastic tip (PPS) + stainless steel body (AISI 303/304)
Weight: 323 g/m (11.4 oz)
Temp range:
Regular: -52°C to +177°C (-62°F to +350°F)
Extended (tip): -52°C to +218°C (-62°F to +425°F)
Extended (cable/connector): -51°C to +260°C (-60°F to +500°F)
Humidity: Stays steady in 93% humidity (56 days max). Less than 3% change.

Install Tips

Thread: M10×1 (tighten up to 15 mm)
Wiring: Use 0.2–1.5 mm² (16–24 AWG) shielded cable. Max 305m (1,000ft) to monitor.
Seal: Uses a Viton O-ring. Not tested before shipping—ask Bently for tests if needed.

Works With

Pairs with 3300 XL Proximitor Sensors. Long wires? Check signal drop at high speeds (see graphs).

Safety Certs

IA (Safe): Class I Zone 0, Class 1 Groups A-D, II E-G, III
nA/ec (No sparks): Class I Zone 2, Class 1 Division 2 Groups A-D
Extra certs: CSA, ATEX, IECEx

What’s Included

Probe body, small ClickLoc connector with protector, user manual (basic pack).
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
