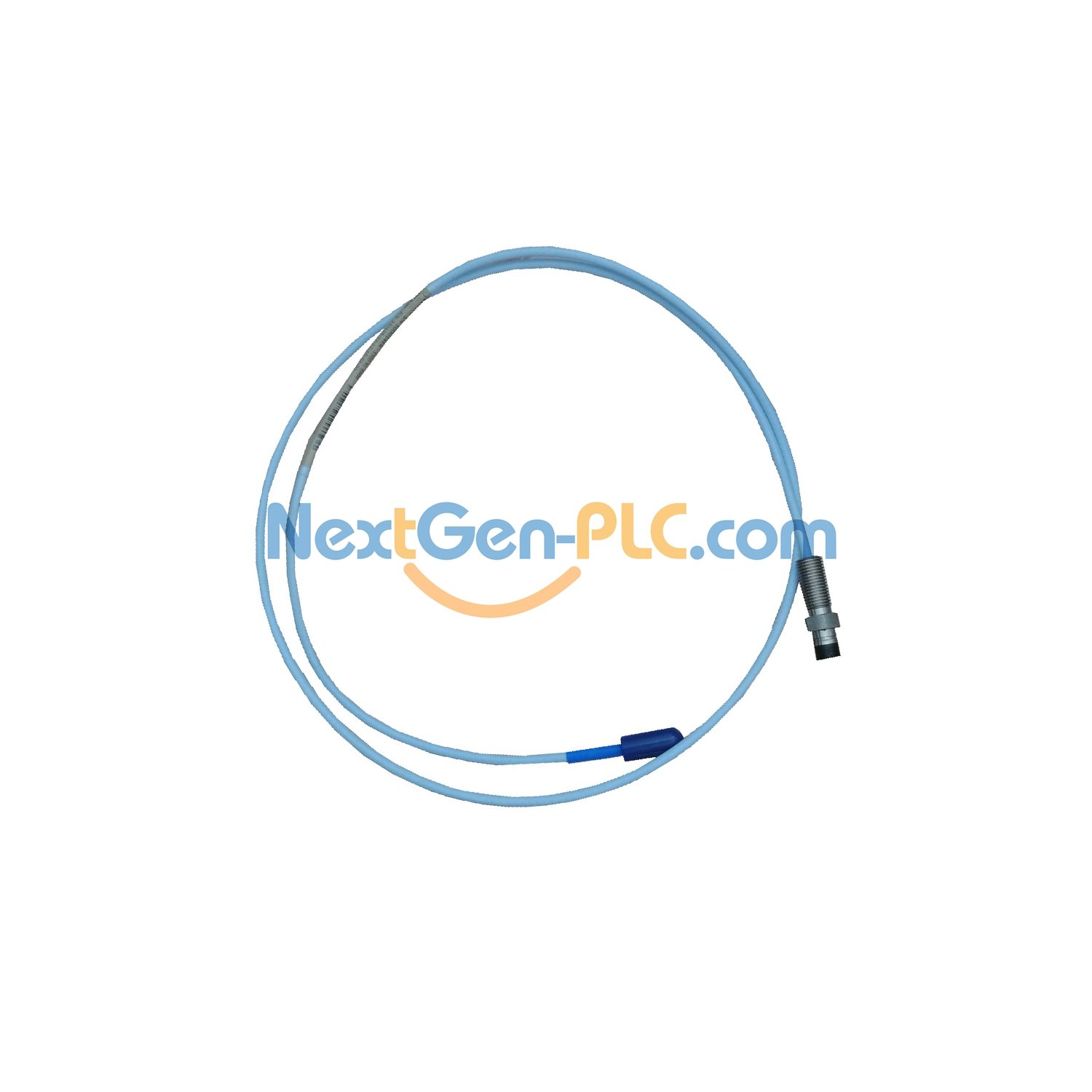

Bently Nevada 3300 XL 8mm Vibration Probe – High Durability & Precision

Bently Nevada’s 3300 XL 8mm Probe is engineered for rugged industrial environments. Featuring a patented TipLoc and CableLoc design, it ensures superior pull strength (330N) and resistance to physical stress. The FluidLoc cable prevents fluid leakage, while the PPS plastic tip and stainless-steel case enhance longevity. Ideal for vibration monitoring in turbines, compressors, and heavy machinery.

Product Details

• Brand: Bently Nevada
• Model: 330101-00-08-10-11-CN
• Type: 3300 XL 8mm Probe, 3/8-24 UNF thread, unarmored
• Origin: Made in U.S.A.

Model Suffix Decoded

Technical Data

• Linear Range: 2 mm (80 mils), starting at 0.25 mm
• Output Signal: -1 to -17 Vdc
• Resistance (RPROBE): 7.59 ± 0.50 Ω (1.0m cable)
• Scale Factor: 7.87 V/mm ±5% (5m system)
• Accuracy (DSL): ±0.025 mm (±1 mil)
• Temperature Range: -52°C to +177°C (standard)
• Pressure Seal: Viton® O-ring (not pre-tested)
• Cable Capacitance: 69.9 pF/m
• Weight: 323 g/m (11.4 oz)

Installation & Compatibility

• Field Wiring: 0.2–1.5 mm² (16–24 AWG), max 305m (1000 ft)
• Recommended Gap: -9 Vdc (~1.27 mm / 50 mils)
• Compatible Systems: 3300 XL monitors, 5/9m configurations

Certifications & Materials

• Agency Approvals: Country-specific (CN suffix)
• Probe Tip: PPS plastic
• Case Material: AISI 303/304 stainless steel

Packaging Includes

• 1x 3300 XL 8mm Probe
• ClickLoc connector with protector
• FluidLoc cable (1.0m length)

Real-World Applications

Used in gas turbines, compressors, pumps, and generators for precise vibration monitoring. The 8mm design withstands harsh conditions in oil & gas, power plants, and heavy industry.

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
