3300 5mm Proximity Probe – 330171-00-40-05-02-00 | Bently Nevada

Bently Nevada Precision Vibration Probe for Industrial Diagnostics

Product Overview

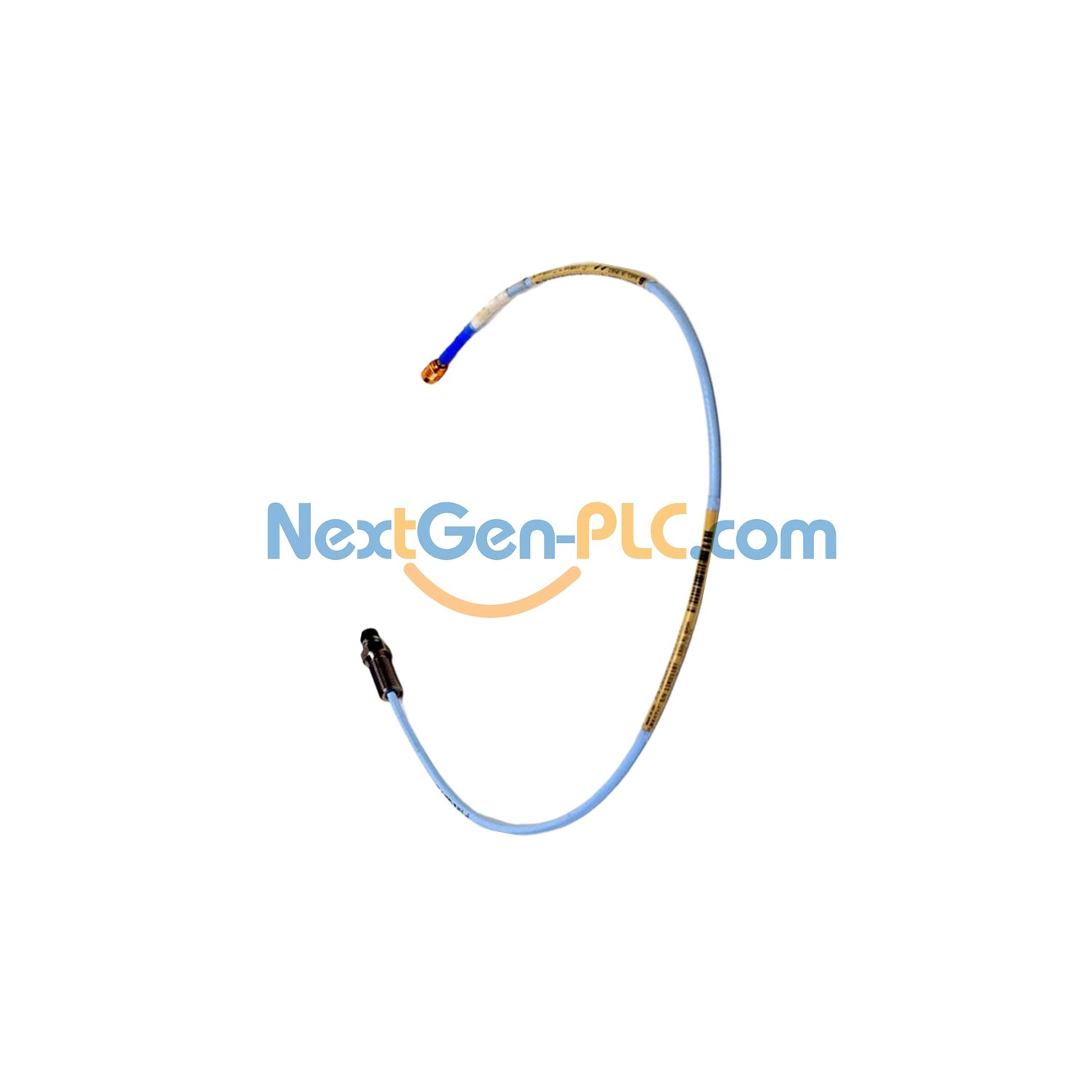

This 330171-00-40-05-02-00 proximity probe from Bently Nevada features a 5mm sensing tip with 1/4-28 UNF threading for secure mounting. The stainless steel housing and PPS tip withstand harsh industrial environments while providing accurate vibration measurements. Made in USA with optional COO documentation.

Technical Specifications

Model: 330171-00-40-05-02-00
Operating Range: -35°C to +177°C (-31°F to +351°F)
Power Requirements: -17.5 to -26 VDC @ 12mA max
Output Signal: 50Ω resistance with ±0.5Ω tolerance
Cable Length: 0.5 meter (1.6 feet)
Case Length: 4.0 inches
Tensile Strength: 222N (50 lbf) at critical connections

Installation Parameters

Use #3 or larger tap drill for mounting holes. Apply 5.1-7.3 N·m torque during installation. Maintain minimum 25.4mm cable bend radius. Maximum thread engagement: 0.375 inches. Avoid temperatures below -34°C to prevent seal damage.

Compatibility & Applications

Works with AISI 4140 steel targets in vibration monitoring systems. Ideal for turbines, compressors, pumps and generators in power plants, oil refineries, and manufacturing facilities. Compatible with standard monitoring equipment via ClickLoc connector.

Certifications & Warranty

No specific agency approvals required (00 option). Includes 1-year manufacturer warranty against defects. Ships with gold-plated connector and protective cover.

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
