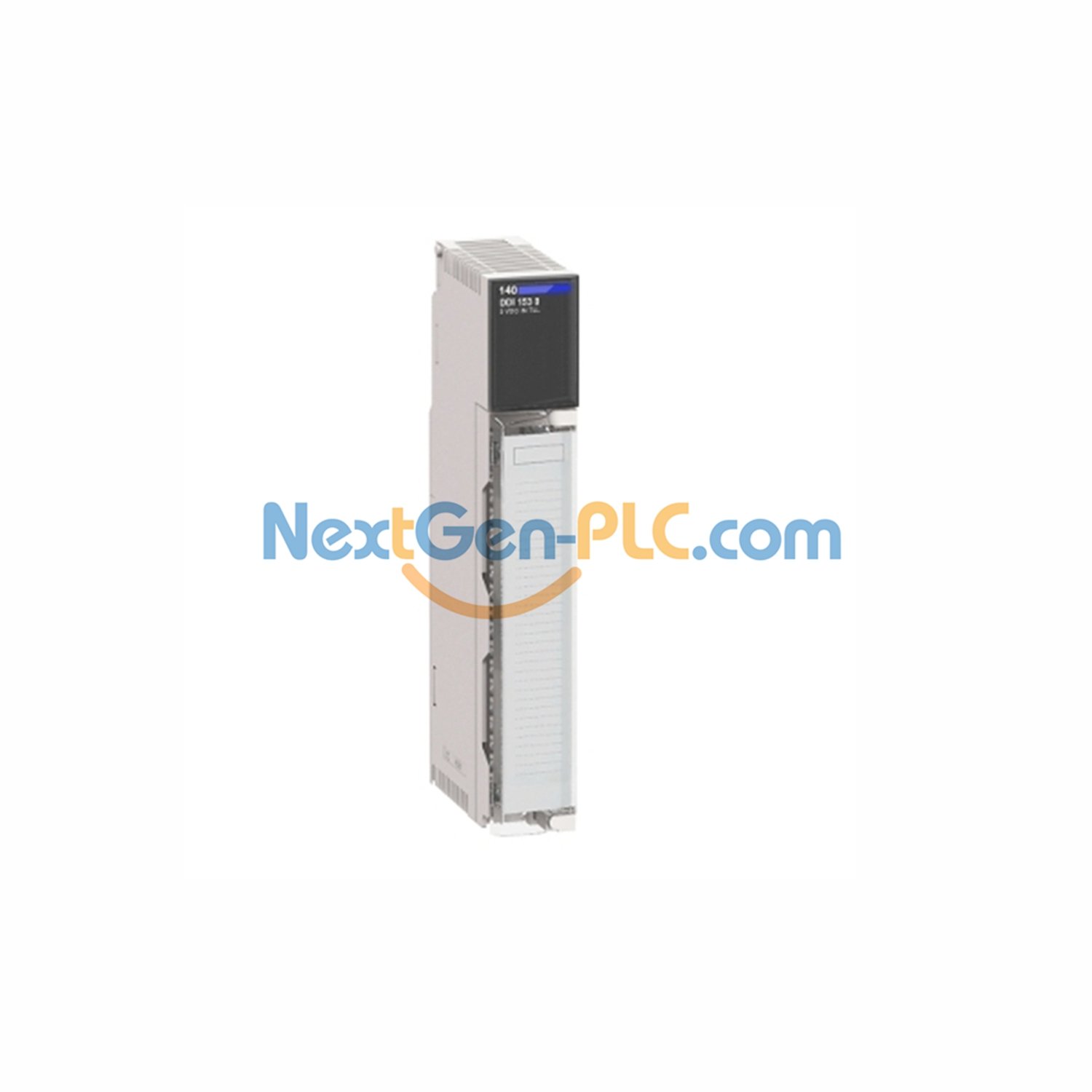

140DDO88500 Schneider Electric Quantum 12 Output Module 24-125V

140DDO88500 Schneider Electric Modicon Quantum High Voltage Output Module

Main Technical Specifications

• Brand & Series: Schneider Electric manufactures this module for the Modicon Quantum series. It integrates seamlessly with existing systems.
• Wide High Voltage Range: The 140DDO88500 operates on 24-125 V DC (19.2 to 156.2 V limits). This makes it ideal for mixed-voltage and international applications.
• Output Configuration: It provides 12 outputs in 2 groups of 6. It uses negative logic (sink) for ground-switching applications.
• Current Ratings: Maximum current is 6 A per module and 3 A per group. Each point handles up to 0.75 A at 40 °C.
• Protection Features: It includes short-circuit protection and varistor overvoltage protection per group. A 4 A fuse provides additional safety.
• Surge & Speed: It handles 4 A surge current for 1 ms. Response time is 1 ms both on and off.
• Load Capability: No inductance limit with diode protection. Supports tungsten loads up to 46 W at 130 V and 8 W at 24 V.
• High Isolation: It provides 2500 Vrms isolation between channels and the bus. Group isolation is 1200 Vrms for 1 minute.
• LED Indicators: The front panel shows 16 green LEDs for output status. One green LED indicates bus activity, and one red LED shows faults.
• Environmental Resistance: It withstands 4 kV contact discharge and 8 kV air discharge. It operates from 0 to 60 °C.
• Power Consumption: The 140DDO88500 draws 375 mA with 6 outputs on, 650 mA with all 12 on. Total dissipation is 1 W plus load losses.

Frequently Asked Questions

• Is this 140DDO88500 brand new?
  Yes, we sell brand new original Schneider Electric modules. The 140DDO88500 comes sealed in original factory boxes.
• What voltage range does this module support?
  The 140DDO88500 supports 24-125 V DC. It accepts up to 156.2 V DC for added safety margin.
• What logic type does this module use?
  The 140DDO88500 uses negative logic (sink). This means it switches the ground side of the load.
• Do you have this module in stock?
  Yes, we maintain stock of the Modicon Quantum 140DDO88500. We can ship immediately.
• What are your shipping methods?
  We ship within 5 days. We use FedEx, UPS, or DHL based on your location.
• Does it include overvoltage protection?
  Yes, it includes varistor overvoltage protection per group. This protects against voltage spikes.
• What is the isolation rating?
  It offers 2500 Vrms isolation between channels and the bus. Group isolation is 1200 Vrms.
• What is the return policy?
  We accept returns within 30 days. The 140DDO88500 must remain in new condition.
• Can this drive tungsten loads?
  Yes, it supports tungsten loads up to 46 W at 130 V and 8 W at 24 V.
• What do the red and green LEDs indicate?
  Green LEDs show individual output status. The red LED lights up for overcurrent faults.
• What is the switching frequency?
  The module supports switching frequency up to 50 Hz for most applications.
