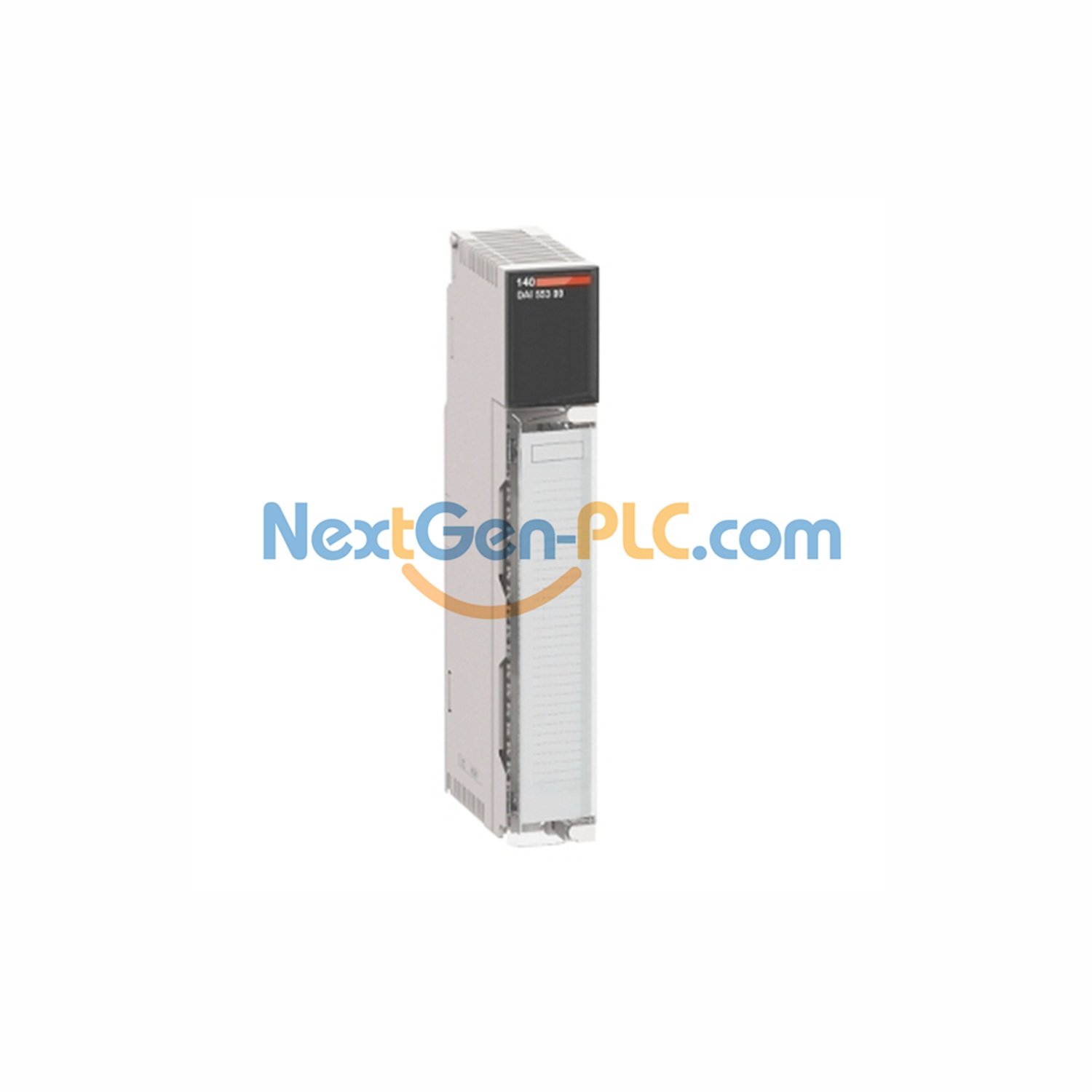

140DAO84000 Schneider Electric Isolated AC Output Module 16ch

Schneider Electric 140DAO84000 Isolated AC Output Module – 16 Channels 20‑253V AC

Key Technical Specifications

• ◆ Brand & Series: Schneider Electric Modicon Quantum – 140DAO84000 belongs to the trusted Quantum family.
• ◆ Output Channels: 16 discrete AC outputs, fully isolated (16 groups of 1 channel).
• ◆ Output Voltage Range: Wide supply 20‑253V AC, 47‑63Hz.
• ◆ Load Current: Up to 4A rms per output (24‑115V) or 3A rms per output (200‑230V); module total 16A rms; sum of any four points limited to 4A continuous.
• ◆ Surge Capability: Withstands 30A for 1 cycle, 20A for 2 cycles, or 10A for 3 cycles per point.
• ◆ Off‑State Leakage: Very low leakage: 1mA @24V/48V, 2mA @115V, 2.5mA @230V.
• ◆ Isolation & Protection: Each channel isolated; internal RC filter for transient suppression; dv/dt 400V/µs; associated fuse rating 5A.
• ◆ Response Time: Super‑fast ≤0.5ms turn‑on and turn‑off.
• ◆ Diagnostics: 16 green LEDs for output status, plus green Active LED and red Fault LED.
• ◆ Power & Weight: Bus current 350mA; dissipation 1.85W + (1.1V x total load current). Net weight 0.485kg (1.069lb).

Isolation, Environmental Tolerance & Compliance

• ◆ Per‑Channel Isolation: Each of the 16 outputs forms its own isolated group, preventing ground loops and enhancing system reliability.
• ◆ Wide Ambient Range: Certified for operation from 0°C to 60°C and storage from -40°C to 85°C, withstanding 95% relative humidity without condensation.
• ◆ EMC / Immunity: Meets IEC 801‑2/‑3 standards: 4kV contact / 8kV air discharge and 10V/m radiated immunity (80‑1000MHz).
• ◆ Approvals: UL 508, CSA C22.2 No 142, cUL, and FM Class 1 Division 2 suitable for hazardous locations.
• ◆ Altitude: Safe for installation up to 5000m (16404ft).

Frequently Asked Questions (FAQ)

• Q: Can I use the 140DAO84000 with different AC voltages on different channels?
  A: Yes, each output is isolated, so you can mix voltages (e.g., 115V and 230V) across channels as long as each stays within 20‑253V AC.
• Q: What is the maximum total current for the module?
  A: The module supports up to 16A rms total, but observe the per‑point limits (4A for 24‑115V, 3A for 200‑230V) and the 4A continuous sum for any four points.
• Q: How are the outputs protected against transients?
  A: Each output includes an internal RC snubber (dv/dt 400V/µs) and the module uses a 5A associated fuse for additional protection.
• Q: What is the off‑state leakage current at 230V AC?
  A: Maximum leakage is only 2.5mA rms at 230V, ensuring minimal power drain when outputs are off.
• Q: Does the 140DAO84000 provide isolation between outputs and the backplane?
  A: Yes, it features full isolation between channels and the bus, enhancing safety in mixed‑voltage environments.
• Q: What diagnostic indicators are available on the front panel?
  A: You get 16 green LEDs for individual output status, plus a green Active LED and a red Fault LED for quick troubleshooting.
